Customizable Underground Mining Vehicle Diesel Engine Fuel Transportation CY-4000

Place of Origin : China

MOQ : 1 set

Payment Terms : LC, T/T

Model NO. : CY-4000

Transport Package : Bulk

Specification : 7795x1900x2275mm

Trademark : Jarlo

Origin : China

HS Code : 8428909090

Supply Ability : 1000 Sets/Year

Customization : Available

After-sales Service : 12 Months

Warranty : 12 Months

Contact Now

CY-4000 Mining diesel engine trackless fuel transportation vehicle

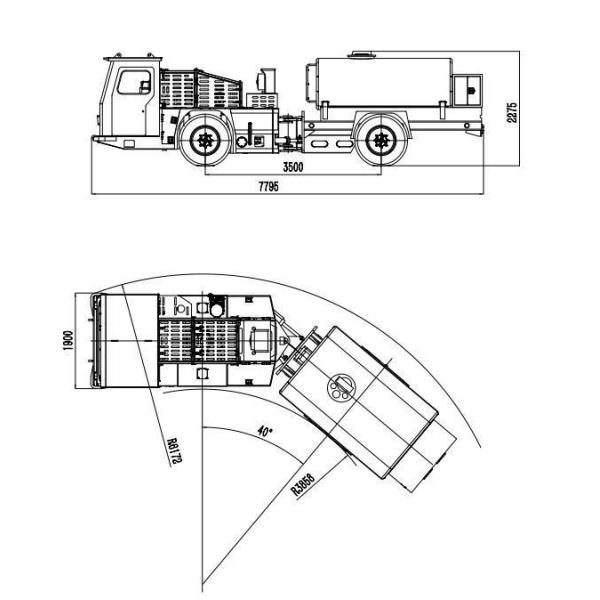

Dimensions

Main technical parameters

	Item		Unit	Parameters
	Overall size	L	mm	7795±100
		W	mm	1900±50
		H	mm	2275±50
	Total Mass		kg	10500±200
	Largest traction		kN	≥80
	Min. Ground clearance		mm	250
	Gradeability		%	25
	Steering angle		(º)	±40
	Lateral swing angle		(º)	±6~8
	Wheelbase		mm	1530
	axle track		mm	3500
	Turning radius	Inner	mm	3858
	Turning radius	Outer	mm	6172
	Max. Driving speed	Gear I	km/h	5±0.5
		Gear II	km/h	10±1.0
		Gear III	km/h	18±1.8
	Effective volume of oil tank		m³	4±0.2
	Oil tank dimensions	L	mm	2700
		W	mm	1750
		H	mm	1020
Rated load capacity			kg	3200±160
Refueling flow			L/min	(30~55)
Allowed suction lift			m	3

Main performance characteristics

Adopt articulated body structure. The front frame is the power part, and the rear frame is equipped with an oil tank with a refueling device. It has double axles and four wheels, and is four-wheel drive.
The front frame is equipped with a swing frame, which increases the swing angle of the front and rear bodies in the vertical plane, allowing the vehicle to land on all wheels on muddy and bumpy roads, and more effectively improves the wheel adhesion and performance, improves the passing ability of the entire vehicle.
The diesel engine adopts Cummins water-cooled engine which has low noise and long service life. The transmission system adopts Dana's integrated torque converter, gearbox and front and rear axles, which is reliable in use and has low maintenance costs.
The cab adopts ergonomic design and is equipped with air conditioning, which improves driving comfort-ability.
The main components of the hydraulic system adopt imported brand products, ensuring the reliability of the hydraulic system.
The Italian SAFIM dual-circuit braking system is adopted. The working brake is a fully enclosed wet multi-disc hydraulic brake, and the emergency brake and parking brake are hydraulic release spring brakes, which effectively ensures braking safety.
In order to effectively ensure low emission of pollutants, the exhaust gas purification adopts well-known imported brands and is equipped with silencers to ensure that the exhaust emissions meet the national emission standards and the exhaust noise is greatly reduced.
The frame adopts post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
The vehicle is equipped with a water metering device and control system.
Optional automatic fire extinguishing device and automatic lubrication device.
